| Soil Water Table Index well - DEG (Dartmouth, MA -Woodbridge Soils) |
USGS
Topo Location
Download Monitoring Well locations for viewing with
Google Earth |

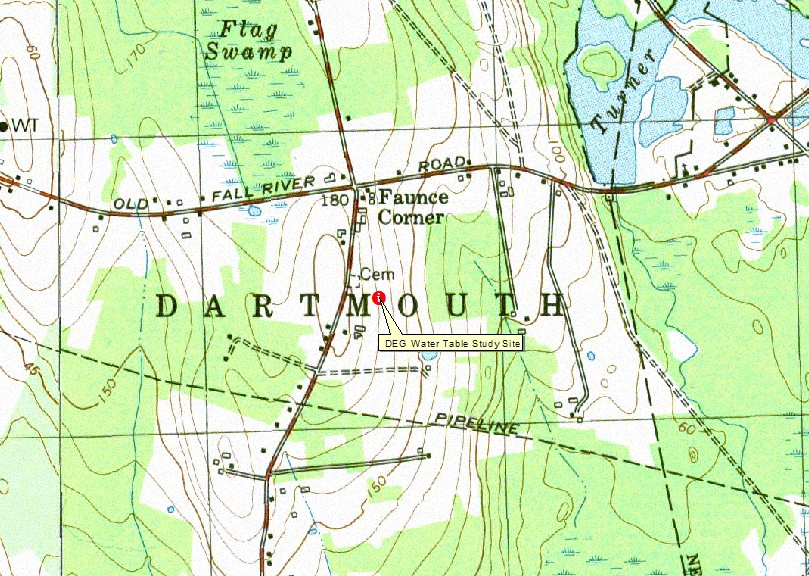

LOCATION.-- Lat 41.675587 N, Lon 70.986666
W | UTM NAD 83 Zone 19 meters: 334631.99 Easting, 4615661.38 Northing.
Bristol County Massachusetts, Town of Dartmouth.
WELL CHARACTERISTICS.-- 2 inch slotted PVC pipe installed to a depth of 8
feet below the surface, a network of 6 wells is installed at this location data
below is for the well at the highest position (elevation) on the landscape. Well
were monitored during the following periods: 9/94 to 4/95, 11/95 to 6/99, 11/97
to 7/98, 10/98 to 12/98, 3/99 to 4/99, 6/99 and 12/99. A total of 77
observations were made.
ELEVATION.-- 180 feet (USGS Topo - National Geodetic Vertical Datum of
1929)
GEOLOGY-- Sandy loam eolian solum underlain by lodgement (dense) till. Landform is a
east sloping side-slope of a drumlin.
SOIL TYPE.- Woodbridge Soils (moderately well drained). The estimated average seasonal high water table,
based on soil morphology for this site is -1.5 feet below the surface based on

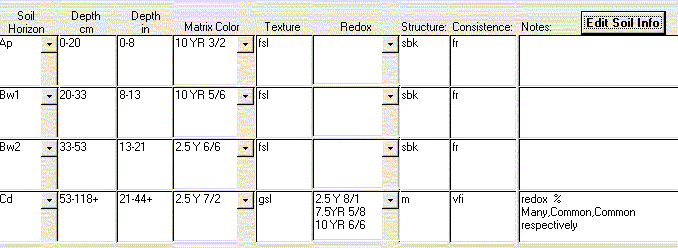

soil morphology. Below is a description of the soil from a small hand-dug test
pit:
GEOLOGY -- Sandy loam eolian solum (A and B horizon) underlain by loamy
lodgement (dense) till.

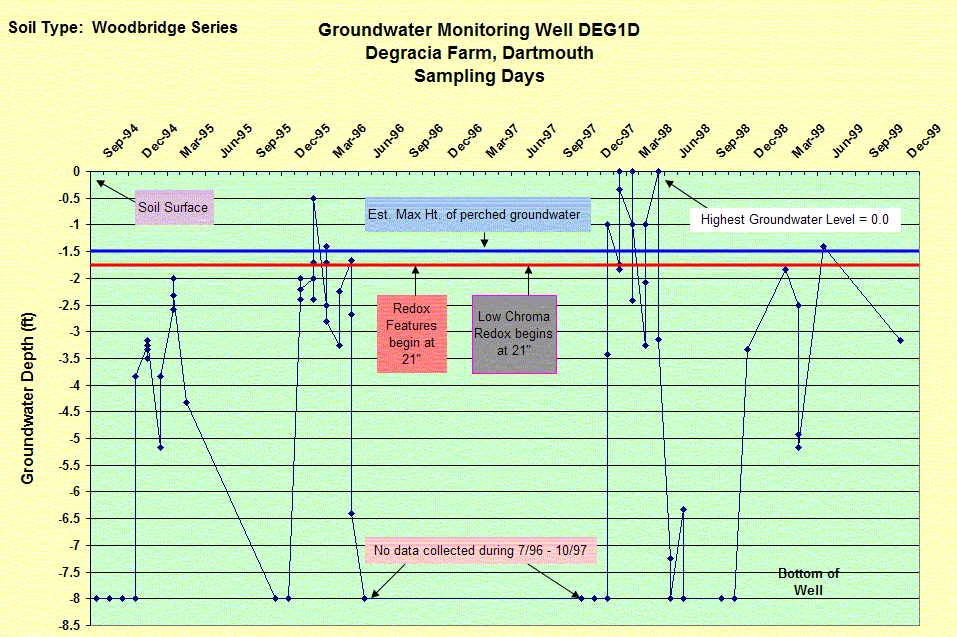

WELL OBSERVATIONS.--Below are the hydrographs of the wells.
Well DEG1:
Contact Jim Turenne for more information | Return to Index Wells
Click here to view a presentation about using a
device to measure maximum water table depths (Morgan and Stolt)
